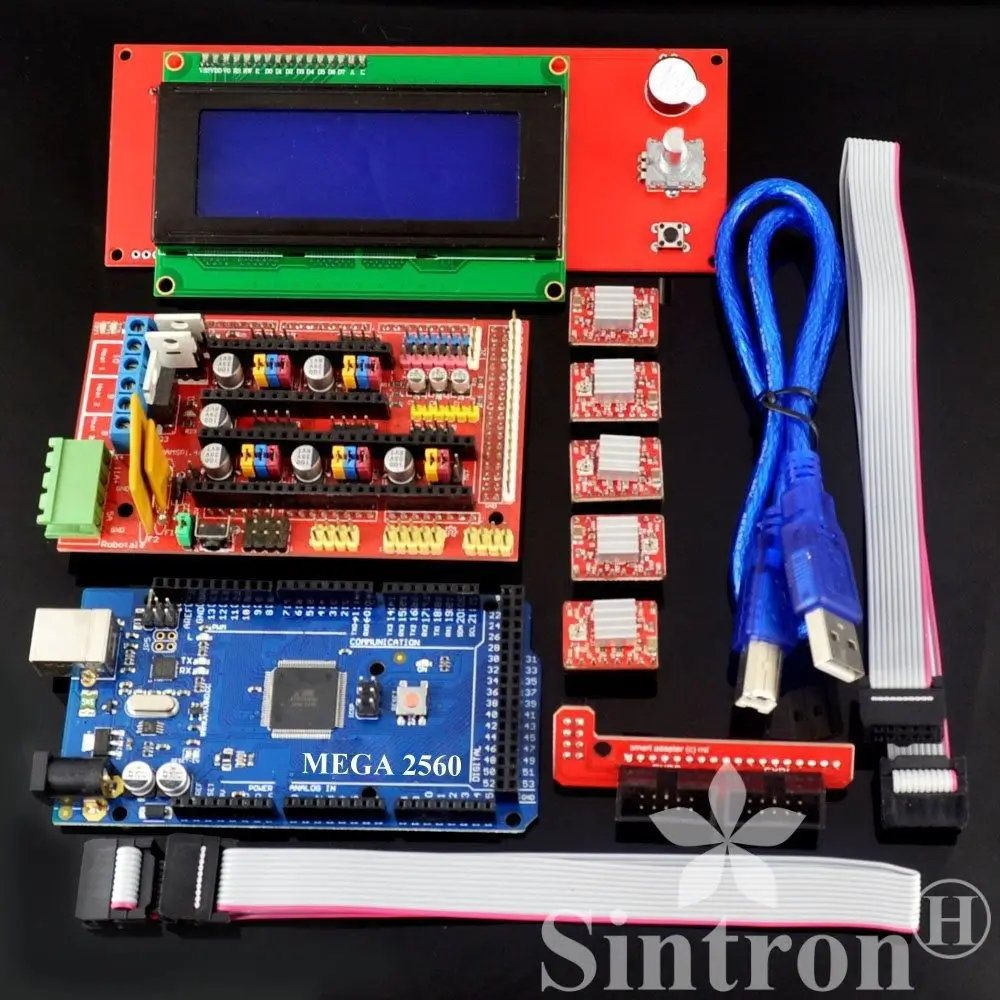

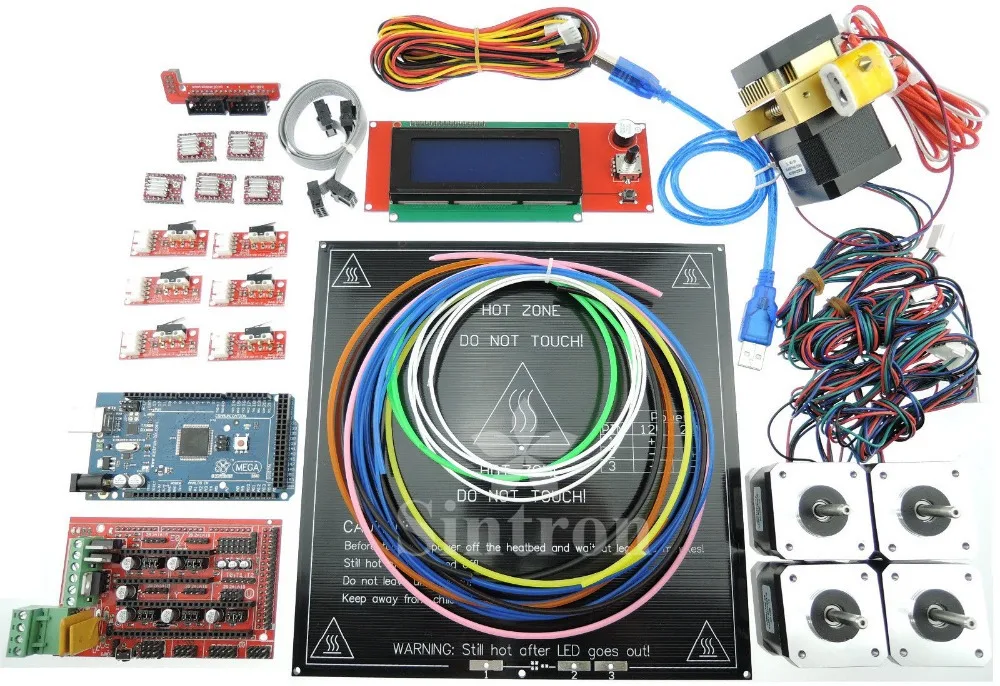

[SINTRON 3D Printer Kit RAMPS 1.4 + Mega 2560 + 5pcs A4988 + 5pcs NEMA 17 Motor + MK8 Extruder + 6 pcs Endstops + heatbed + Filament
we not just sell them, we also provide good after-sales service, so welcome to discuss with us, we will try to do technical support as much as we can.





Overview
This kit are includedall the electronics parts you needfor 3D printer (except power supply, which you can use PC ATX power), so after you purchase this kit, then can start your project right away, no need to worry about what might be missing again. The parts we selected are all with very good quality, also we provide support while you are building it, if you have questions, please feel free to send us an email, we will also help you to complete the project!
Below are the details of parts, please read carefully, because there are many other sellers might sell you the bad and cheap quality, and cause you the whole system crash.(especially the extruder hot-end and cold-end)
Item Description

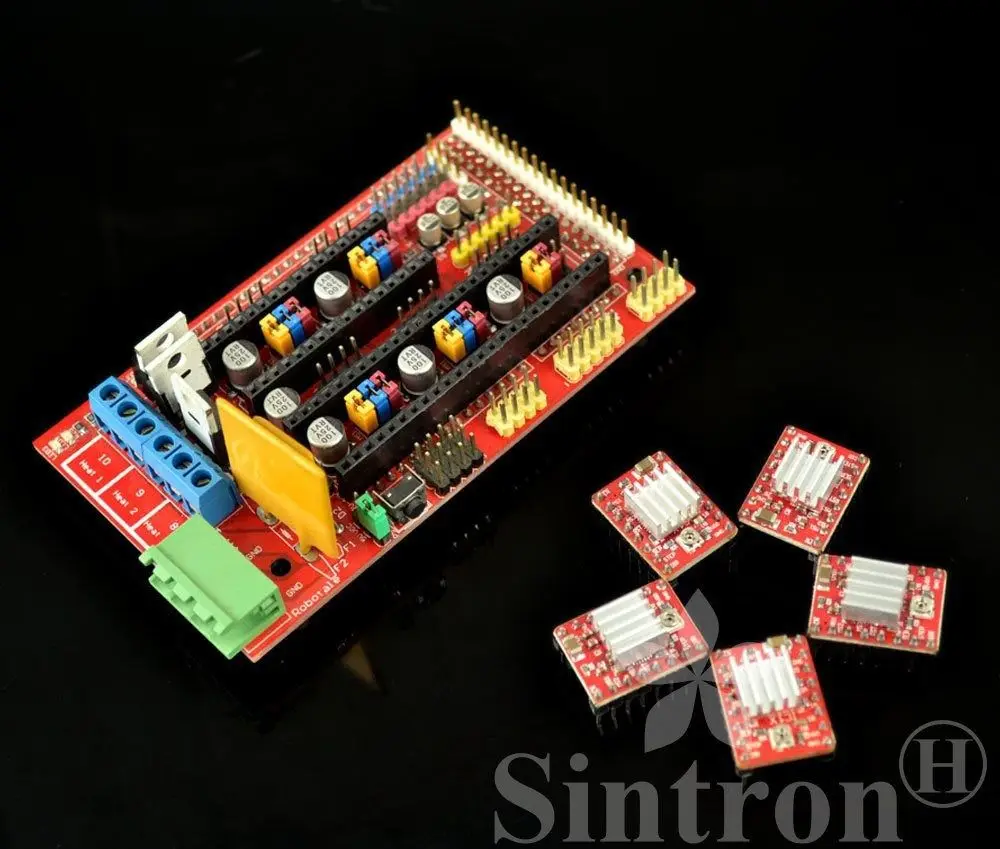

(1) 3D Printer Controller RAMPS 1.4
The RepRap Arduino-compatible MEGA Pololu Shield, or RAMPS for short. It is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino-compatible Mega with the powerful Arduino-compatible MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Arduino-compatible MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
Version 1.4 uses surface mount capacitors and resistors to further cover edge issue cases.


Features
(1) USB type B receptacle. (2) SD Card add on available. (3) Fits 5 Pololu stepper driver board. (4) LEDs indicate when heater outputs on. (5) Expandable to control other accessories. (6) Heated bed control with additional 11A fuse. (7) Option to connect 2 motors to Z for Prusa Mendel. (8) I2C and SPI pins left available for future expansion. (9) It has provisions for the cartesian robot and extruder. (10) All the Mosfets are hooked into PWM pins for versatility. (11) 3 mosfets for heater / fan outputs and 3 thermistor circuits. (12) Fused at 5A for additional safety and component protection. (13) Pololu boards are on pin header sockets so they can be replaced easily or removed for use in future designs. (14) Servo style connectors are used to connect to the endstops, motors, and leds. These connectors are gold plated, rated for 3A, very compact, and globally available.
Diagram



(2) Arduino-Compatible Mega 2560 R3
Fully compatible with original Arduino MEGA 2560 R3, with this product, you are able to use all the Arduino open source platform to create or learn interactive objects, it will be a lot of fun while you are creating and learning it, so just get this and start it, we also provide reference pdf files that can help you to improve skills very quickly. after all, time matters, the sooner you can improve your programing skills, the sooner you can create amazing projects!
Compared with UNO R3, this is with main Chip ATmega2560, with more I/O Pins, and additional 10 PWM output, of course, the EEPROM is also with larger space.


(3) A4988 StepStick Compatible Stepper Motor Driver Module
A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to the easy implementation. As long as the "step" input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.
In the micro-step operation, A4988 chopping control inside automatically selects the current decay mode (Slow or Mixed). In mixed decay mode, the device is initially set to a fixed downtime in some fast decay, then the rest of the slow decay downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO), and crossover-current protection. Special power sequencing.
A4988 surface mount QFN package (ES), a size of 5 mm × 5 mm, nominal overall package height of 0.90 mm, with an exposed pad for enhanced thermal dissipation. This package is Pb (suffix-T), with 100% matte tin leadframe plating.






(4) LCD 12864 Graphic Smart Display Controller
This full graphic Smart Controller contains aSD-Card reader, an rotary encoder and a 128 x 64 dot matrix LCD display. You can easy connect it to your Ramps board using the "smart adapter" included.
After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.






(5) 4 pcs NEMA 17 1.8° 2.6 kg.cm flat shaft Stepper Motor







(6) MK8 Extruder Hot-end & Cold-end
The extruder is almost the most important part for 3D printer, please check the the color of the metal, it's specially processed to ensure the extruder won't have"plastic material stuck"problem. I can't emphasize any more how important this is, other sellers don't have this and would cause many problems.







(7)MK3 Heatbed 3mm Alu PCB Board Dual Power
The Aluminum Heatbed MK3 have features similar to MK2 and you can also operate this board with 12V and 24V two voltage.
(thermistor and wires are included)

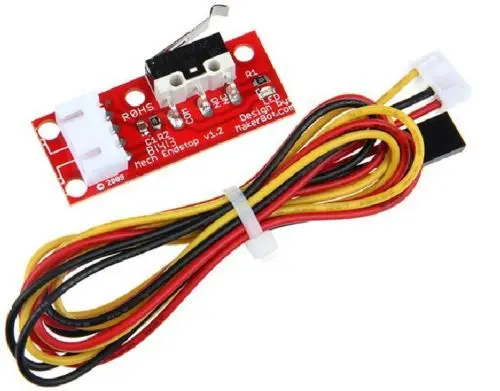

(8) 6 pcs of Mechanical Endstops
Mechanical switches are less complicated to implement and cheaper than optical endstops. The function of endstops are to determine the original position of the extruder hot-end, so it knows where to extrude the plastic material.
while using the Endstops, please be careful! for the wrong connection, it's possible to burn the mega 2560 board!!







(9) Filament for test
In this kit, we also include some plastic filament for you to test. please notice:we will only send one random color, and this is only for test, not enough to print a 3D model.


We could provide more!!
below are 3 must get software and firmware:
1.Marlin: firmware to communicate all the parts.( we include the code you need ) 2.Printrun: the software to communicate between 3D printer and computer. 3.Slic3r: final step to get the Gcode.( Gcode format is what you use to run your 3D printer )
