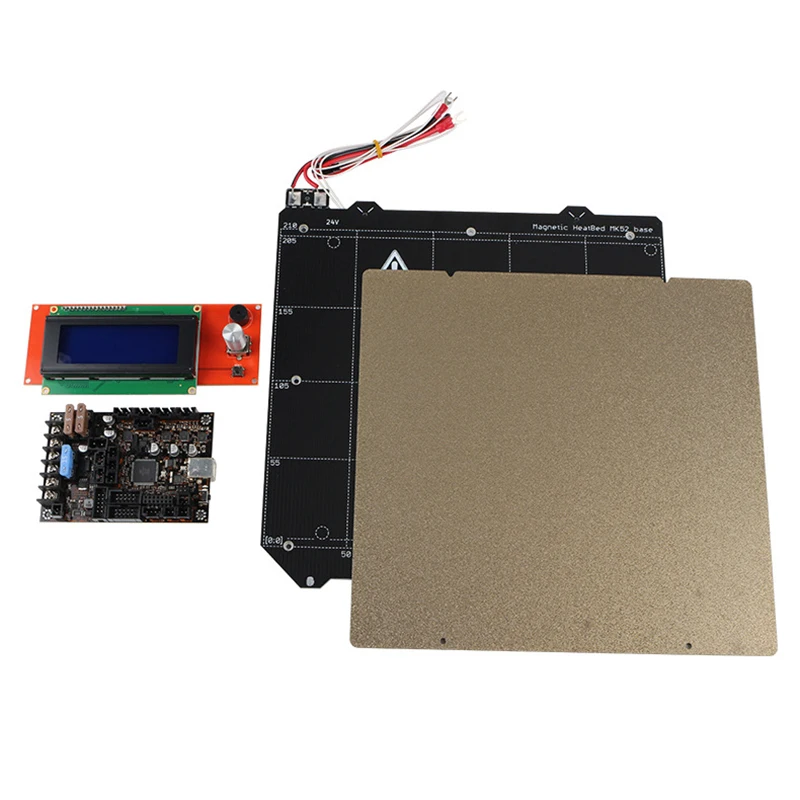

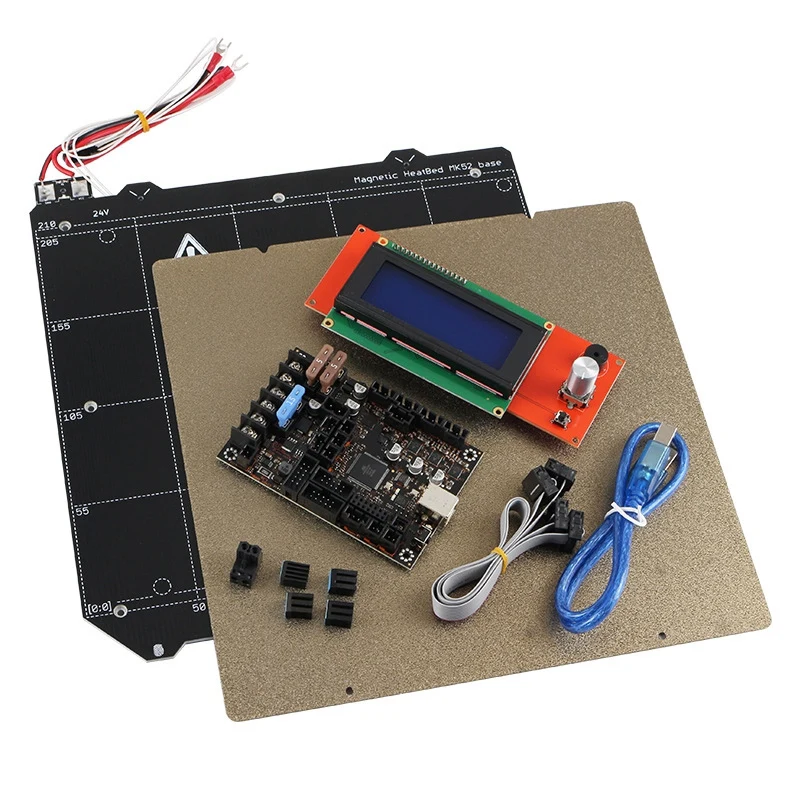

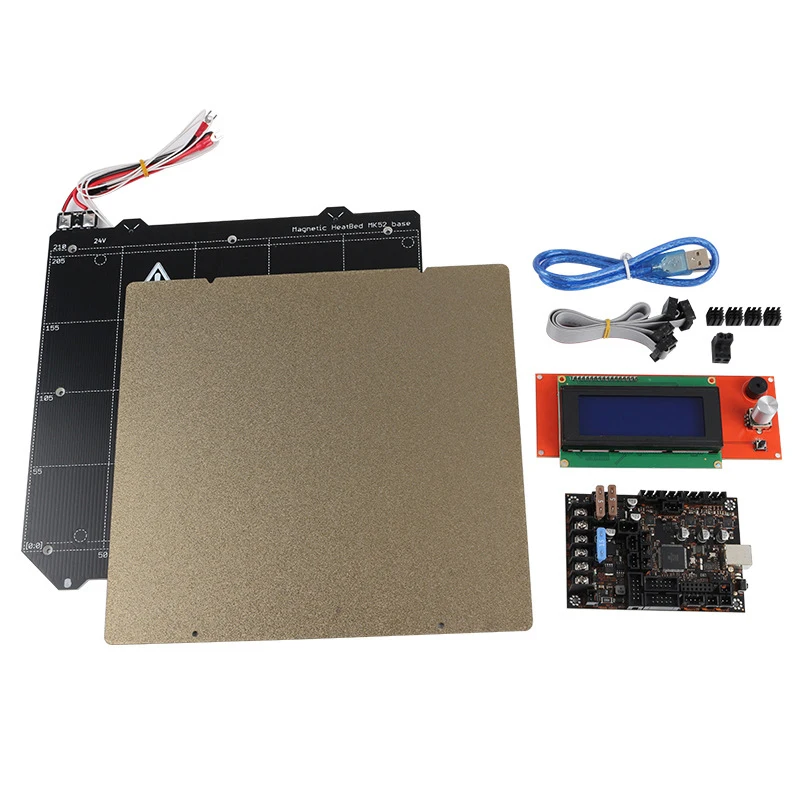

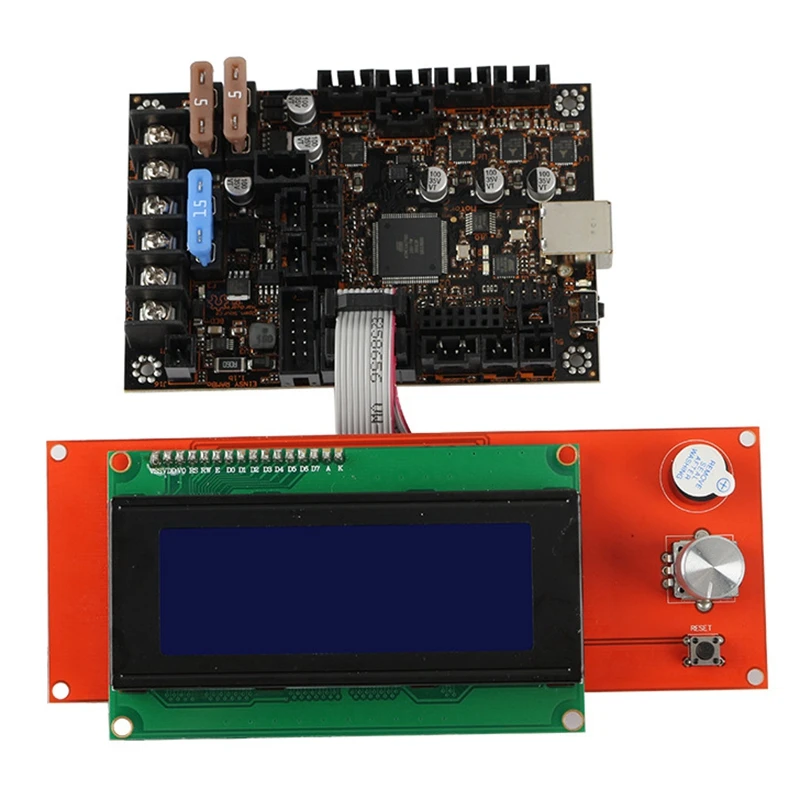

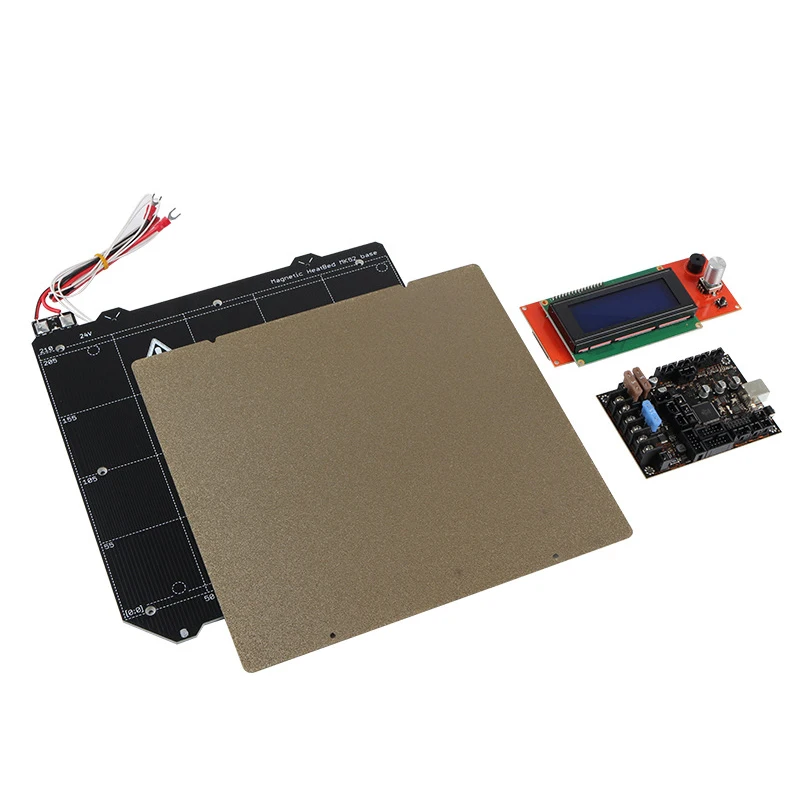

The Latest Einsy Rambo 1.1A Motherboard +2004 LCD Display MK52 Magnetic Hot Bed PEI Steel Plate for Prusa I3 M

Buy Einsy Rambo 1.1A Motherboard +2004 LCD Display MK52 Magnetic Hot Bed PEI Steel Plate for Prusa I3 M

Check out our sale items Einsy Rambo 1.1A Motherboard +2004 LCD Display MK52 Magnetic Hot Bed PEI Steel Plate for Prusa I3 M and enjoy release satisfactory Shipping on

Shop our Einsy Rambo 1.1A Motherboard +2004 LCD Display MK52 Magnetic Hot Bed PEI Steel Plate for Prusa I3 M with price US $158.94 , And get 20%OFF

5PCS/Set Pencil Grips Dolphin Children Pencil Holder Pen Writing Aid Grip Posture Correction Tool (5pcs Random Colour)

[4000266699319

p {text-align: left;font-size: 18px;font-family: Times New Roman;line-height: 1.2;}div {text-align: left;font-size: 18px;font-family: Times New Roman;line-height: 1.2;}img {width: 800px;text-align: left;}

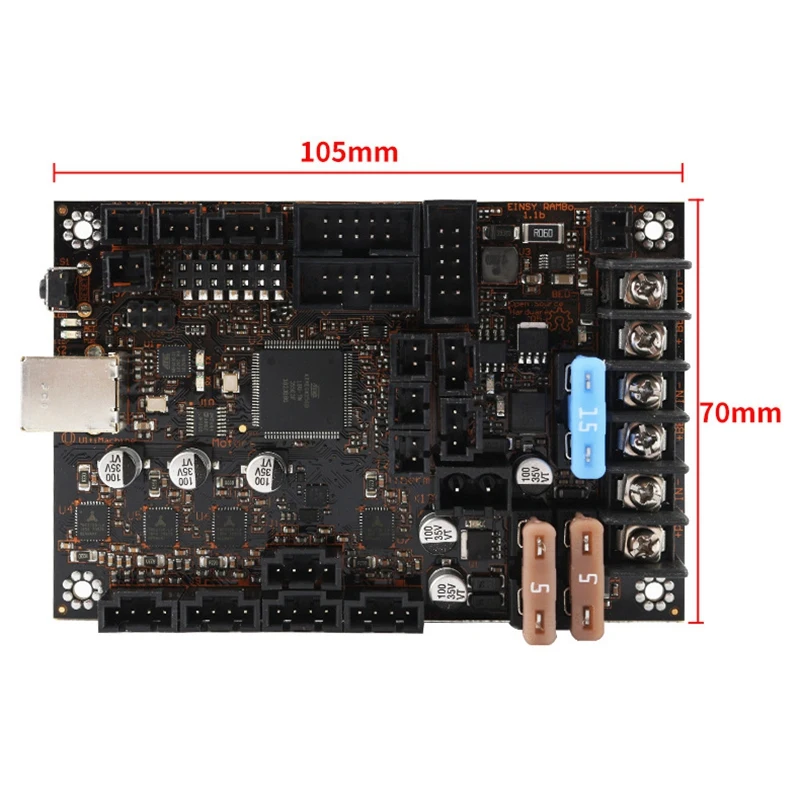

Functions:For Arduino MEGA compatible Atmega2560 and Atmega32u2 processors are compatible with all ramps of the firmware class. Crystals for both usb and mcu (timing to 10ppm accuracy). 3 socket thermistor + 4th circuit thermistor on ZProbe. Motor controllers4 Trinamic TMC2130 1 / 256th microstep motor drivers (2 connectors on Z for Prusa Mendel and other dual Z printer designs); SPI step current control instead of PWM. Microstep mode configured by the MCU via firmware (SPI, no sweaters); PWM DC outputs (extruders, fans, etc.).4 outputs (1 extruder, 1 bed, 2 low power consumption (fan, etc.); Low resistance mosfet transistors for cool running; LED indicator for each channel; Fans have a 3pin fan connector.Fans have a 5 V, not a 12-24 V energy source. Fan connectors have a tachometer feedback pin to the MCU to measure fan speed in the firmware state.Power:2 bus power input. Heated bed, 15A 12-24V (15A dedicated fuse); Primary power 10A 12-24V: motors, logic and fans (5A dedicated fuse) + extruders (5A dedicated fuse)SMPS built for the 5th generation with engines, logical and rail fansProvides 5V power for fansConnectors4-pin motor, with Molex 5057-9404 plug3-pin fan plug - Molex 5057-94032-pin thermistor, mechanical Molex plug limiter 5057-94022004LCD displayBrand new and high quality.This intelligent controller includes an SD card reader, a rotary encoder and 20 characters x 4 LCD display. You can easily connect it to the board ramp using the "smart adapter" included.After connecting the panel to the ramp, you no longer need your computer, the intelligent controller provides power for the phone's SD card. What's more, all actions such as calibration, axis movements can be performed using a rotary encoder on an intelligent controllerPrint your 3D designs without a computer, only with the g-code design saved on the SD card.Firmware: you need Marlin v3 firmware or newer. If you are using older firmware, you should flash your board again.Color: picture colorMaterial: plastic + metalPackage Contents:1 * MK52 magnetic hot bed1 * MK52 gold double layer textured PEI powder steel plate1 * Einsy Rambo1.1a motherboard1 * 2004LCD1 * Button2 * Gray cable1 * Data line4 * Heat sinkOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
