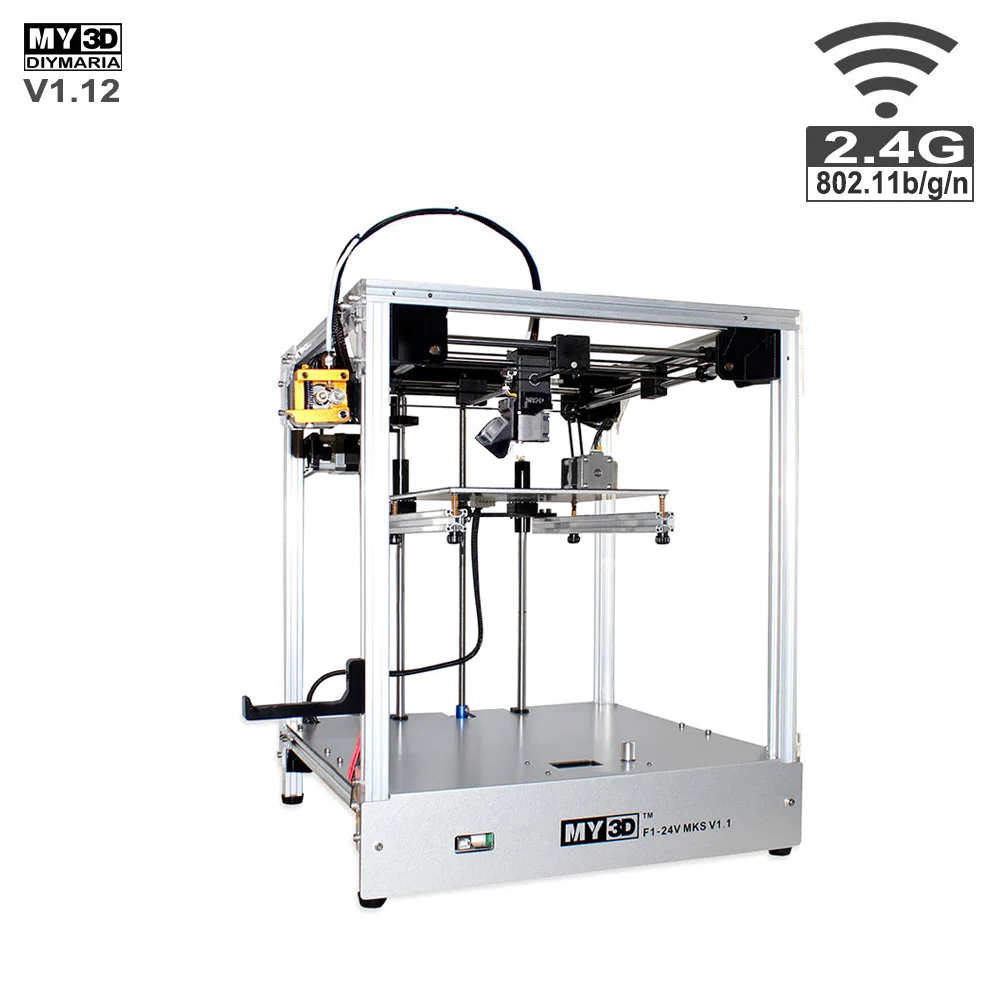

3d printer Motherboard MSK V1.1 Cross structure Full metal structure 3D printer 2019 new

[32848504402

Printing technology: FDM (fused deposition modeling)Printer Layer thickness: 0.05-0.3mmPrinting speed: 20 ~ 200mm / sec. (Recommended speed 60MM/S)The diameter of the nozzle: 0.4mm / 1.75mmNozzle support: 0.2mm-0.8mmExtruder Quantity: OnePrint speed: 20 ~ 150mm / sec.Materials for printing: PLA, ABS, HIPS, WOOD-PLAPrint Model size: 205x205x245mmCura output formats: GcodeConnection: LAN WIFI SD card, USB port TO PCRelevant documents and technical information download addresshttps://github.com/my3dltd Eectric:Input rating: 110-220 VAC, 50 / 60Hz, 15A 360WHot bed :200w/24vHeating head power：50w/24vHot bed temperature: Max 110 ° CExtruder operating temperature: Max 250 ° C The motherboard comes with functions: power off, continuous printing.It needs to be started after printing the first layer,and manually select whether to continue printing after power is restored.

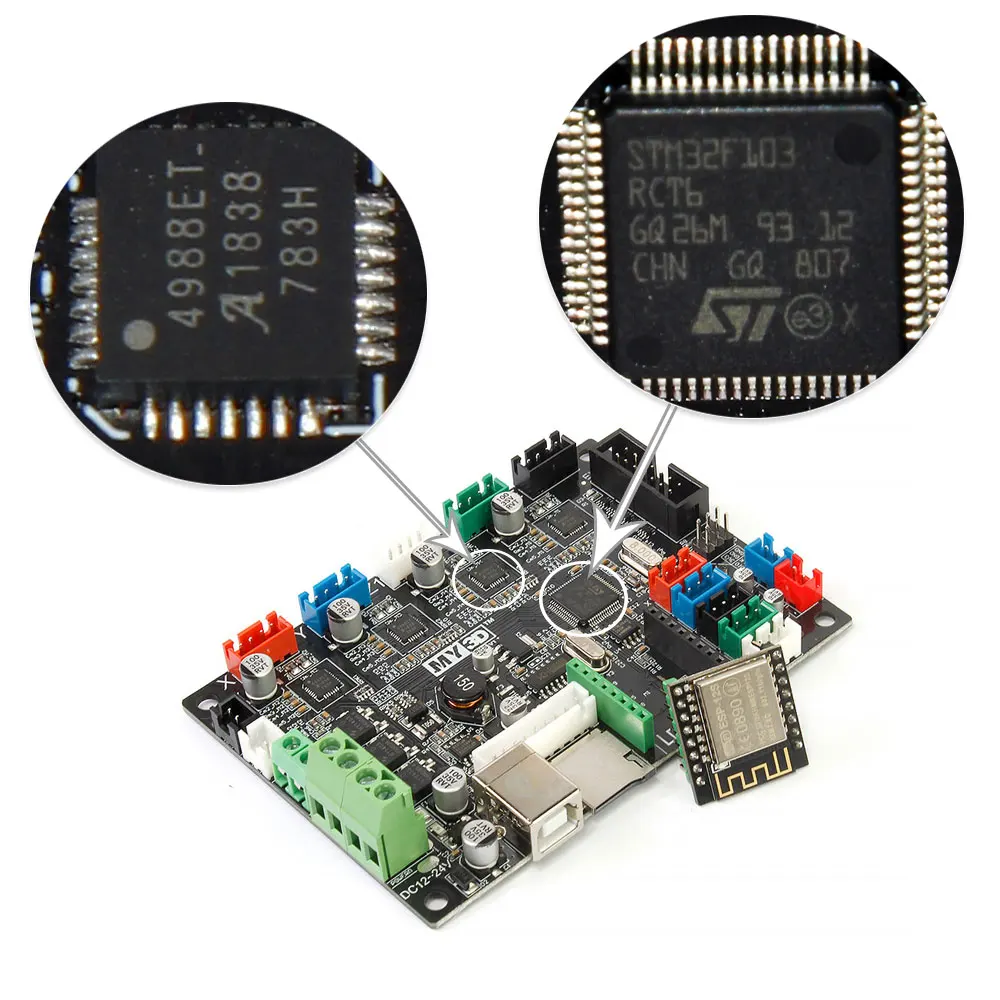

32BIT main control chipMicroprocessor STM32Display MINI12864TF card upgrade firmware Motor Driver: Motherboard Integrated 4988Temperature sensor interface: NTC100KMore support for extended upgrade functionsNeed to buy additional modules:Please click on the link below to view

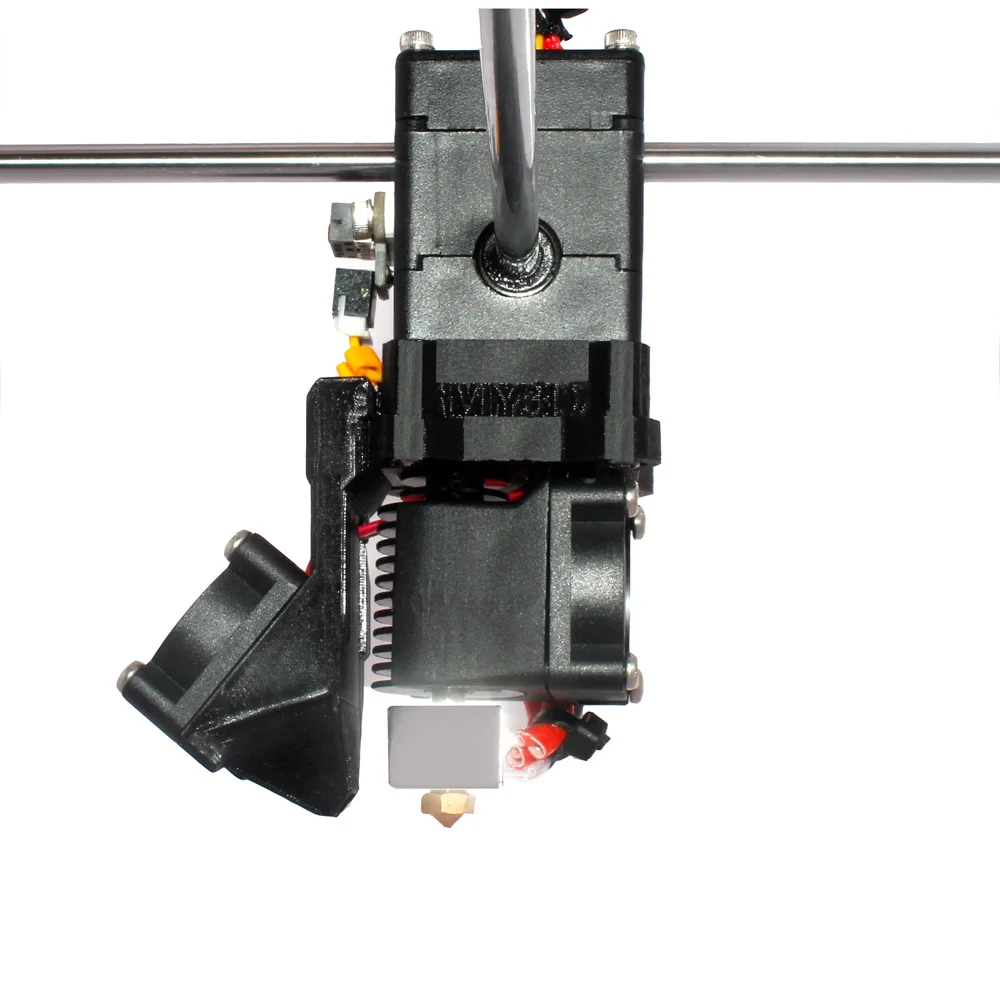

Click the above picture to download the 3D stl GCODE print file, which is open source. The material of this machine is PLA. You can print and upgrade ABS by yourself.New cooling head to ensure cooling effect

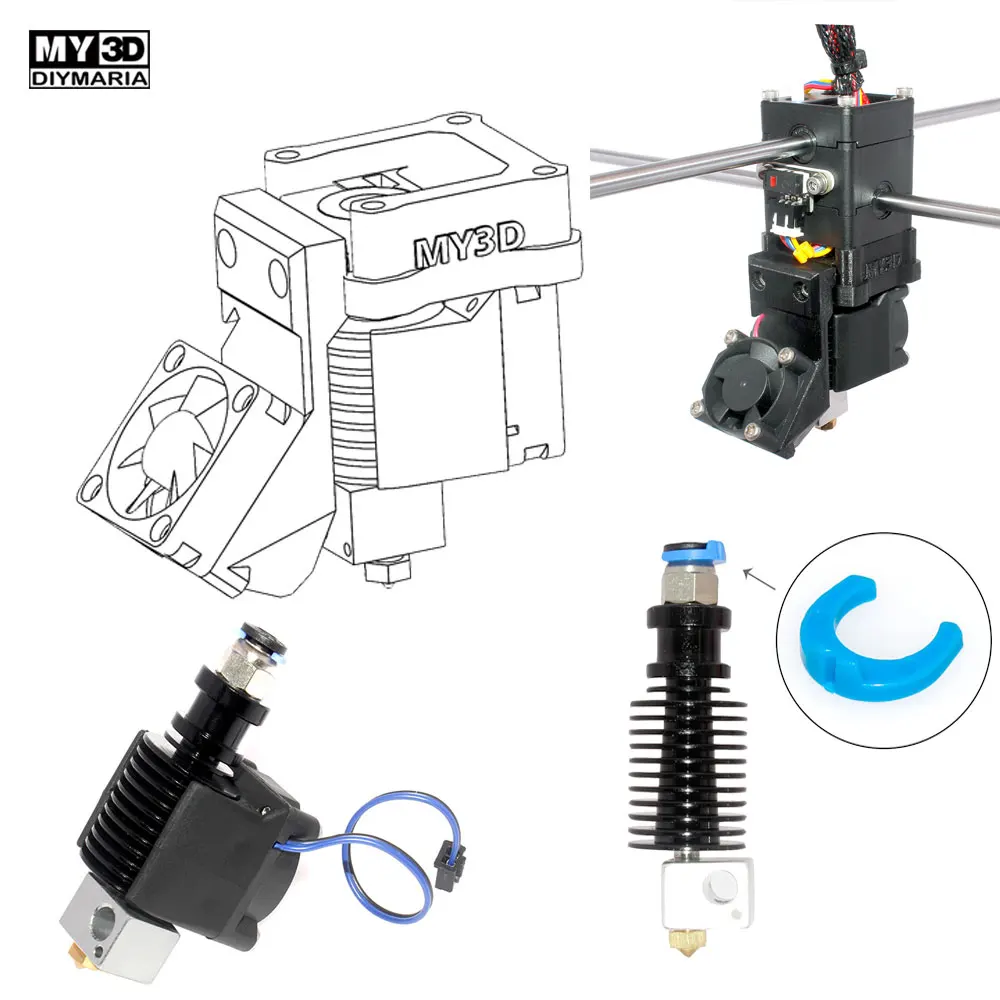

NEW 24v 50w heating system to quickly heat PLA 190 ℃ in just 1 minuteCan be upgraded to high temperature version heating head system

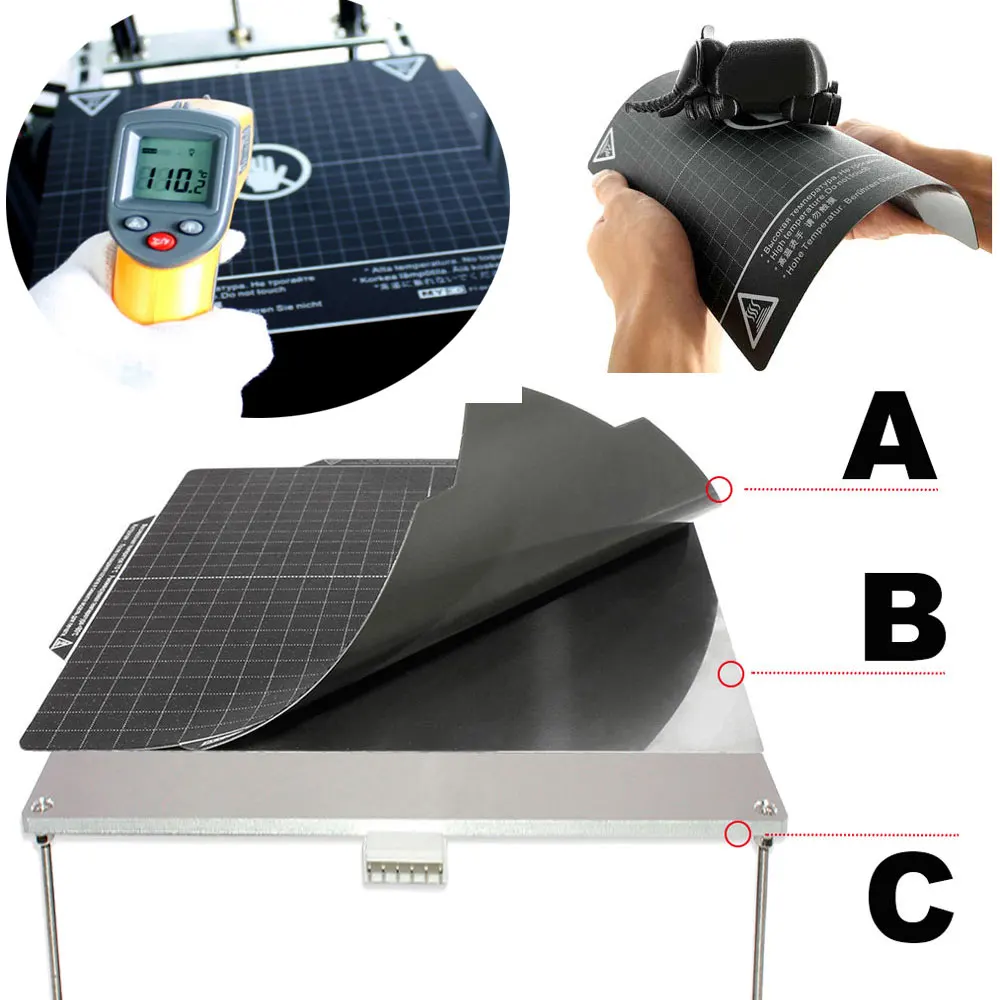

The hot bed system is a new design A design PCB is heated, B the middle is a magnetic stainless steel plate 3M high temperature resistant glue. C The top is a professional high temperature soft magnetic sticker: removable and convenient for mold removal.
3mm thickness aluminum plateThe hot bed system is a new design of 24v 250W power, heating is fast and stable,
3mm thickness aluminum plateSpring steel spring fine-tuning the distance between the nozzle and the hot bed

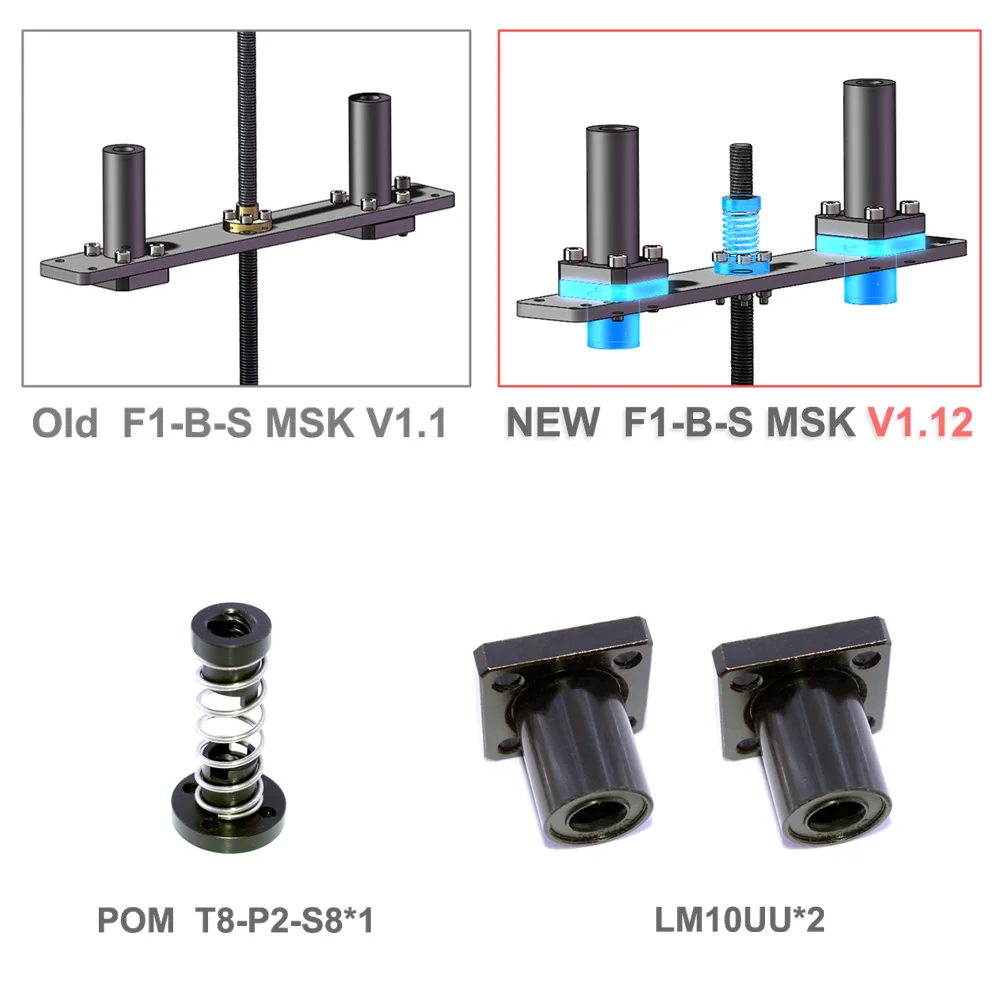

Z-axis reinforced design: lengthened 4 linear bearing design, optical axis diameter 10mm. Professional anti-clearance nut to ensure repeated positioning and movement of the z-axis accurately to 0.005mm. Printable 0.05mm layer thicknessThe color of the parts in the picture is black, the actual version may be silver, and the material process is the same.
24v 360w power professional 3D printer power supply, product passed ROSH CE FCC certification
Bandwidth: 6mm Tooth pitch: 2mmMaterial: special tooth surface nylon fabric + intermediate glass fiber + EPDM rubber
The latest upgrade power switch220V / 110V 10A male plug power switch socket with fuse. Made of ABS plastic and metal material (external).
CNC full metal aluminum alloy extruder. With high strength spring steel spring,
32BIT main control chipMicroprocessor STM32Display MINI12864TF card upgrade firmware Motor Driver: Motherboard Integrated 4988Temperature sensor interface: NTC100KMore support for extended upgrade functionsNeed to buy additional modules:Please click on the link below to view
nullnull
